Stratasys F123 Series

Stratasys F123 Series proficient at every stage of prototyping, from concept to validation to functional performance.

立即諮詢

Overview

Stratasys F123 Series proficient at every stage of prototyping, from concept to validation to functional performance.

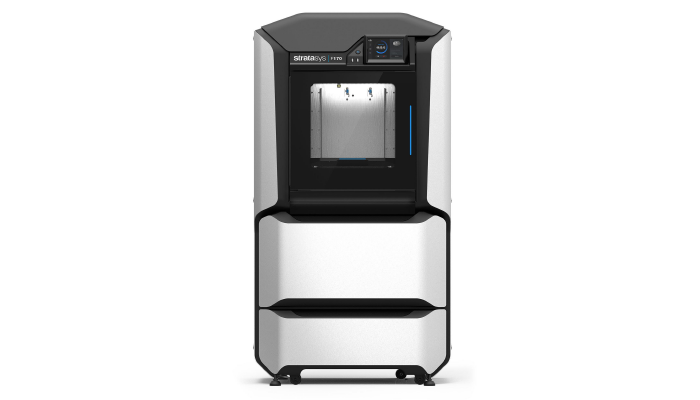

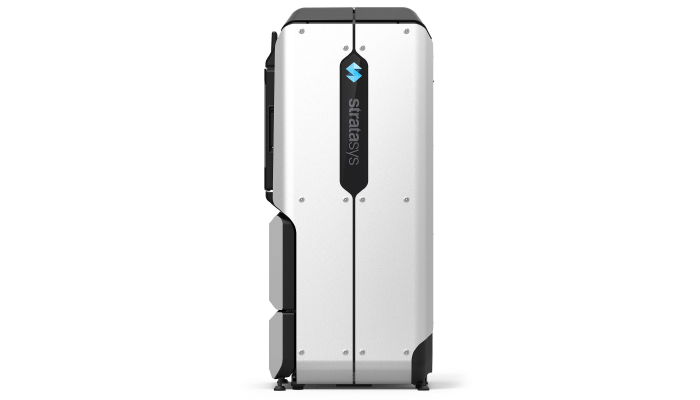

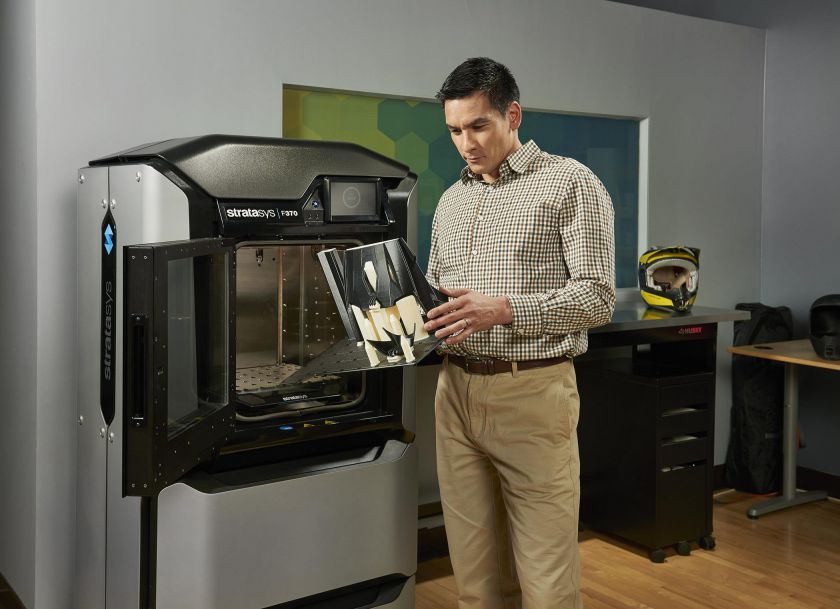

The three printers – F170, F270 and F370 – support a range of capabilities and budgets for every stage of prototyping. And today’s most common CAD file formats can be imported directly into GrabCAD.

Minimal setup simply plug and play to give your entire office access to professional 3D printing.
Auto-calibration spend less time troubleshooting and more time prototyping.
Fast and easy material swaps maximize your design team’s productivity.

Specifications

Product	Stratasys F123 Series
Build Size	Stratasys F170		Stratasys F270			Stratasys F370
	254 x 254 x 254 mm (10 x 10 x 10 in.)		305 x 254 x 305 mm (12 x 10 x 12 in.)			355 x 254 x 355 mm (14 x 10 x 14 in.)
Layer Thickness		0.013 in. (0.330 mm)		0.010 in. (0.254 mm)	0.007 in. (0.178 mm)		0.005 in. (0.127 mm)
	PLA			X
	ABS	X		X	X		X
	ASA	X		X	X		X
	PC-ABS	X		X	X		X
System Requirements	Windows 7, 8, 8.1 and 10 (64bit only) with a minimum of 4GB RAM
System Size	1626 x 864 x 711 mm (64 x 34 x 28 in.)
Weight	227 kg (500 lbs) with consumables
Software	GrabCAD Print™

Materials

Model Materials

PLA
ABS
ASA
PC-ABS

Support Materials

SCA-1200
SCA-3600
